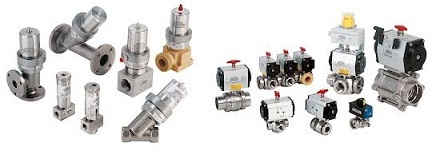

PNEUMATIC / MANUAL BALL VALVES

The ball valves BUROCCO INOXVALVOLE are charaterized by their innovative shape and adopted technical solutions.
- Up to 5 utilizing ways.
- Autoadjustable gaskets on ball and stem.
- Rotating stem and ball on bearings in PTFE opportunely modified for the utmost working precision and the life of the seat balls.
- Valve dismantling without removing the pipes.
- Rapid replacement of seat balls and stem gasket.
- 2 way versionwith rotation in any position on 360°C even after the installation.
- Besides 3-4 way valves it is possible to have a version with way on the ball rotation axle which extends the application field of the valve considerably, for example: 2-3- way angle, 2-3-4 way with drain, sample collection or data receipt (temperature, pressure, capacity, etc.); 2-3-4-5 way with washing.
- Special applications in combination with on/off, unidirectional and safety valves, with filters, etc.
- Possibility to seal the interspace between ball and body valve through injection of material inert to corrosive fluids (max working temperature 80 °C).
- Application of connections for pressure washing interspace ball/body during the normal working cycle, avoiding contamination among differerent fluids.

Miniature pneumatic shut-off valve DN 6 - 25, max. 16 bar | MVP series Slanting seat on-off stop microvalves in stainless steel AISI 316L (1.4409)                           Sizes: DN6-25 (1/4"-1")  Rating: PN16  Working temperature: -30°C/+180°C
